anixter#10040538#ARY-7234-AC-PD
| Description: | DescriptionAntaira Technologies’ ARY-7234-AC-PD is designed for industrial and enterprise outdoor wireless access applications. Embedded with the Qualcomm IPQ4029 Quad-Core chipset, it boasts network robustness, stability and wider network coverage. Based on IEEE 802.11a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps. Features
|
| Transit Time: | Transit time is 15 business days in the US |
| NCNR: | No |
| Specification Sheet: | View Document |
| Manufacturer: | ANTAIRA-TECHNOLOGIES-LLC |
Description

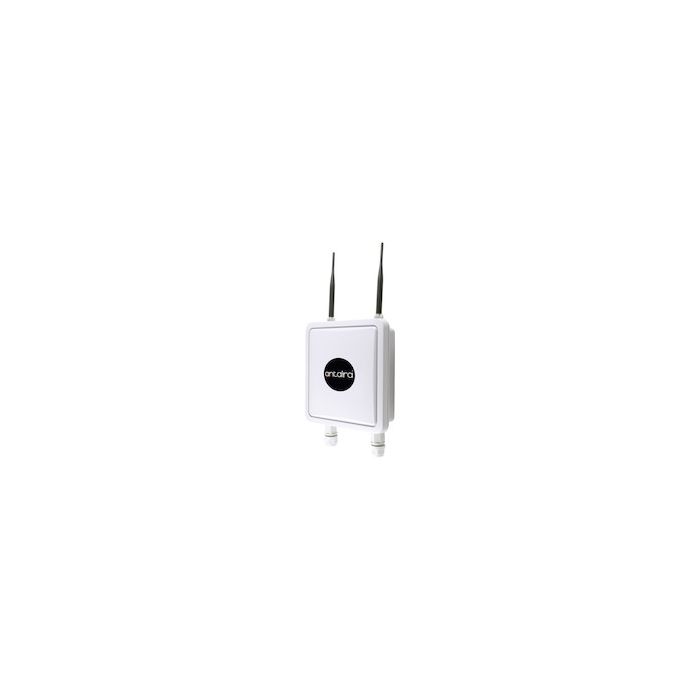

Antaira Technologies’ ARY-7234-AC-PD is designed for industrial and enterprise outdoor wireless access applications. Embedded with the Qualcomm IPQ4029 Quad-Core chipset, it boasts network robustness, stability and wider network coverage. Based on IEEE 802.11a/b/g/n/ac, the access point supports high-speed data transmission of up to 867Mbps.
The ARY-7234-AC-PD is capable of operating in different modes, which makes it suitable for a wide variety of wireless applications, including long-distance depl oyments. The unit also allows the user to position the wireless antenna in a better signal-broadcasting location for improved wireless coverage and signal strength or simply in a more convenient location.
Features
- High Speed WLAN Supports up to 867Mbps
- Dual Radios (2.4GHz/5GHz concurrent)
- Industrial MIMO Wireless Solution (Dual 2Tx/2Rx)
- Support IEEE 802.11a/b/g/n/ac
- PD (Powered Device) IEEE 802.3af/at Compliant
- Support Ethernet Gigabit WAN/LAN port
- Quam IPQ4029 Quad-Core Wi-Fi SoC
- Tx Power 24dBm for 2.4GHz/5GHz
- WEP, WPA, WPA2, TKIP, AES
- CE, FCC, NCC, RCM certified
- Power Input: PoE 48-56VDC
- IP67 Plastic Housing
- Pole Mountable
- Operating Temperature Range: 0 to 50C
- 5-Year Warranty
| Negotiable | Yes |
|---|---|
| Manufacturer | ANTAIRA-TECHNOLOGIES-LLC |
| Specification Sheet | https://objects.eanixter.com/PD599322.PDF |
