anixter#1050258#IMC-100A-ST-M-T

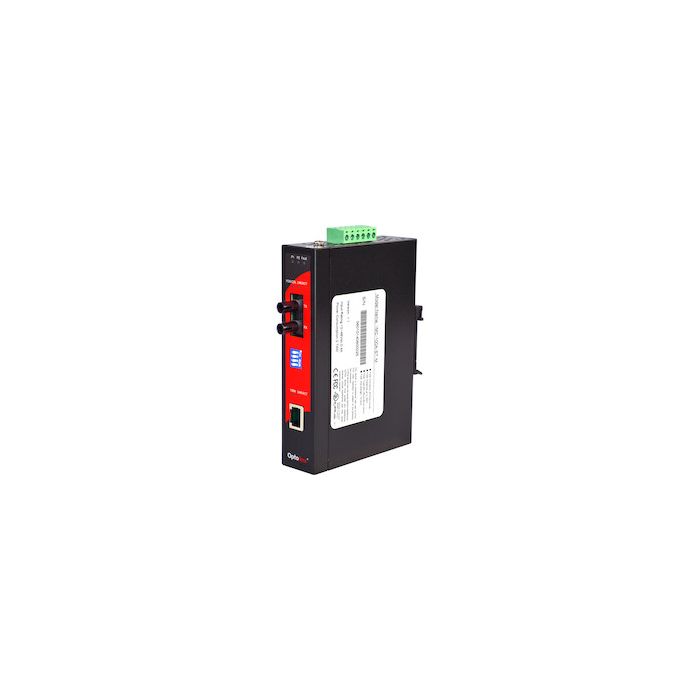

| Description: | DescriptionAntaira Technologies’ IMC-100A-ST-M-T is a industrial grade, extended operating temperature, fast Ethernet, multimode, media converter. The IMC-100A-ST-M-T will convert between 10/100BaseTX copper to 100BaseFX fiber. The industrial media converter conf orms to the FCC emission standards and is housed in a metal, din rail mountable case. The IMC-100A-ST-M-T features a standard ST connector as well as a copper STP-RJ45 Ethernet connector. The IMC-100A-ST-M-T is compliant with the IEEE 802.3u and 802.3x standards. The IMC-100A-ST-M-T fast Ethernet media converter will use multimode 1310nm wavelength fiber and is capable of communication of up to 2 kilometers. Features
|
| Transit Time: | Transit time is 15 business days in the US |
| NCNR: | No |
| Specification Sheet: | View Document |
| Manufacturer: | ANTAIRA-TECHNOLOGIES-LLC |
Description
Antaira Technologies’ IMC-100A-ST-M-T is a industrial grade, extended operating temperature, fast Ethernet, multimode, media converter. The IMC-100A-ST-M-T will convert between 10/100BaseTX copper to 100BaseFX fiber. The industrial media converter conf orms to the FCC emission standards and is housed in a metal, din rail mountable case. The IMC-100A-ST-M-T features a standard ST connector as well as a copper STP-RJ45 Ethernet connector. The IMC-100A-ST-M-T is compliant with the IEEE 802.3u and 802.3x standards. The IMC-100A-ST-M-T fast Ethernet media converter will use multimode 1310nm wavelength fiber and is capable of communication of up to 2 kilometers.
Features
- Extended Operating Temperature -40 ~ 80 C (-40 ~ 176 F)
- UTP to Fiber Media Converter
- RJ-45 Port Support Auto MDI/MDI-X Function
- Auto Negotiation Speed, Half/Full Duplex
- Store-and-Forward Switching Architecture
- Built-in Link Loss Forwarding (LLF)Link-Fault-Pass-Through (LFP)
- Wide-range Redundant Power Design
- Power Polarity Reverse Protection
- Overload Current Protection
- DIN-Rail or Wall Mountable
- IP30 Protection
- 5-Year Warranty
| Negotiable | Yes |
|---|---|
| Manufacturer | ANTAIRA-TECHNOLOGIES-LLC |
| Specification Sheet | https://objects.eanixter.com/PD558926.PDF |
