anixter#1051664#SFP-10G-M
$38.16
SKU
1051664
| Description: | DescriptionThe SFP-10G-M is designed to transmit and receive optical data over 50/125 um or 62.5/125 um multimode optical fiber. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-SR standard. Features
|
| Transit Time: | Transit time is 15 business days in the US |
| NCNR: | No |
| Specification Sheet: | View Document |
| Manufacturer: | ANTAIRA-TECHNOLOGIES-LLC |
Description

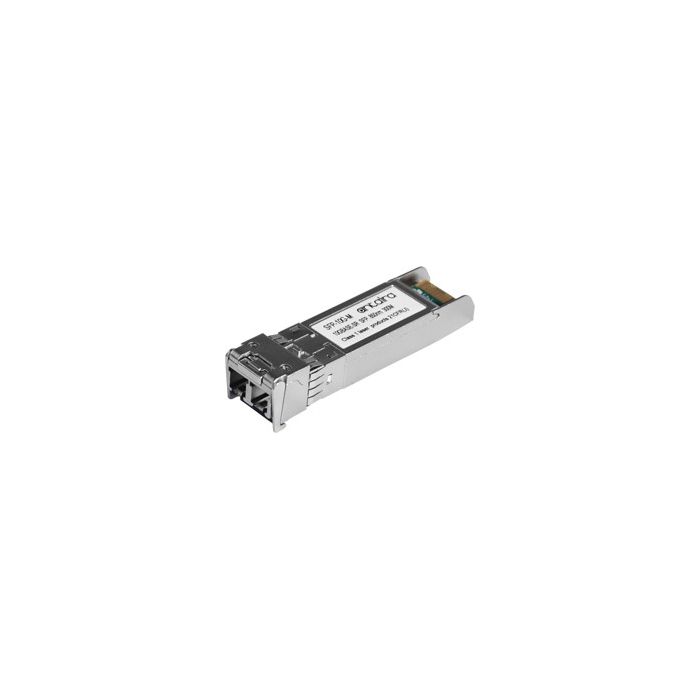

The SFP-10G-M is designed to transmit and receive optical data over 50/125 um or 62.5/125 um multimode optical fiber. The transmitter converts 10Gbit/s serial PECL or CML electrical data into serial optical data compliant with the 10GBASE-SR standard.
Features
- 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-SR
- Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form Factor pluggable module "SFP+"
- 850nm VCSEL transmitter, PIN photo-detector
- 2-wire inteface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
- Operating case temperature: 0 to 70C
- All-metal housing for superior EMI performance
- Low power consumption
- Advanced firmware aow customer system encryption information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
| Negotiable | Yes |
|---|---|
| Manufacturer | ANTAIRA-TECHNOLOGIES-LLC |
| Specification Sheet | https://objects.eanixter.com/PD559212.PDF |
