anixter#3BALU-7501-03TR#57173501
| Description: | DescriptionSouthwire’s TelcoFlex II Cable is single conductor with a class I (modified) bunched (8 and 6 AWG) and rope-bunched (4 AWG and larger) stranded tinned copper conforming to ASTM B-33 and Underwriter’s Laboratories requirements. An opaque mylar tape sh all be applied over the conductor to facilitate stripping. Insulation is 90C rated low smoke, non-halogen, TelcoHyde(TM) 5221 conforming to Underwriter’s Laboratories Standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105C AWM rated . The insulation has a limiting oxygen index of 35%. Features
Specification DescriptionUL Listed As: Central Office Power Cable |
| Transit Time: | Transit time is 15 business days in the US |
| NCNR: | No |
| Specification Sheet: | View Document |
| Manufacturer: | SOUTHWIRE-COMPANY |
Description

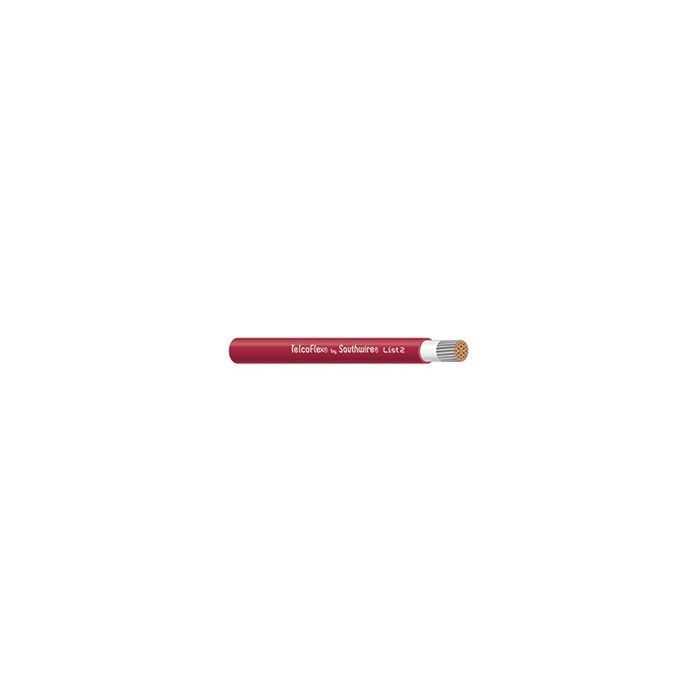

Southwire’s TelcoFlex II Cable is single conductor with a class I (modified) bunched (8 and 6 AWG) and rope-bunched (4 AWG and larger) stranded tinned copper conforming to ASTM B-33 and Underwriter’s Laboratories requirements. An opaque mylar tape sh all be applied over the conductor to facilitate stripping. Insulation is 90C rated low smoke, non-halogen, TelcoHyde(TM) 5221 conforming to Underwriter’s Laboratories Standard 44 and Telcordia Specification GR-347-CORE, also UL and CSA 105C AWM rated . The insulation has a limiting oxygen index of 35%.
Features
- UL Listed As: Central Office Power Cable
- UL Listed Standard 44: Thermoset Insulated Type RHH/ST1
- FT-4 Flame Test
- VW-1
- ASTM B-33 and B172 for Flexible Strand
- Physical and Electrical tests in accordance with UL Standard 44 Requirements
- CSA AWM I B 10GR - 347 - Core Compliant by Telcordia
- Meets the Requirements of WP93811 for Cold Flow (Creep) and Cut Through
- Non-Halogen
- Low Smoke - LS
- IEC 60674 and 60332
Specification Description
UL Listed As: Central Office Power Cable
UL Listed Standard 44: Thermoset Insulated Type RHH/ST1
FT-4 Flame Test
VW-1
ASTM B-33 and B172 for Flexible Strand
Physical and Electrical tests in accordance with UL Standard 44 Requirements
CSA AWM I B 105C
GR - 347 - Core Compliant by Telcordia
Meets the Requirements of WP93811 for Cold Flow (Creep) and Cut Through
Non-Halogen
Low Smoke - LS
| Negotiable | Yes |
|---|---|
| Manufacturer | SOUTHWIRE-COMPANY |
| Specification Sheet | https://objects.eanixter.com/PD403915.PDF |
| UNSPSC Code | 26121642 |
| Conductor Size | 750 KCMIL (AKA MCM) |
| Conductor Count | 1 CONDUCTOR |
| Conductor Material | TINNED OR COATED COPPER |
| Conductor Type | STRANDED |
| Screen/Shield | UNSHIELDED |
| Jacket Material | UNJACKETED/NON-SHEATHED |
| Earth/Ground Wires | NO |
| Voltage Range | 600V |
| Composite | NO |
| Armor | NO |
