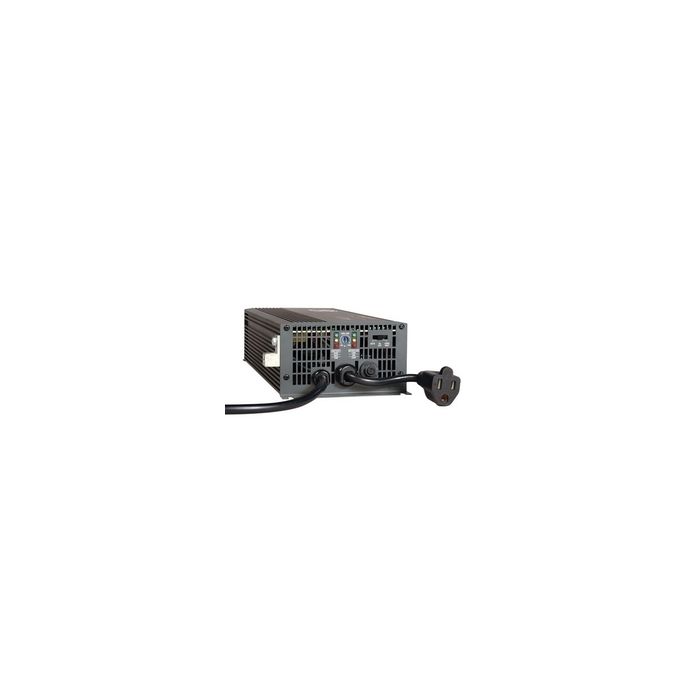

anixter#565055#APS700HF

Features

• Reliable Power for Mobile and Remote Sites
• Generates safe, stable, computer-grade 120V AC power from 12V battery bank
• Ideal for powering small applications ranging from power tools to computers and sensitive monitoring equipment
• Designed for easy instllation in RVs, over-the-road trucks, fleet vehicles and conversion vans
• Functions as vehicle inverter, standalone AC power source or extended-run UPS
• Features NEMA 5-15R outlet
• Unlimited runtime with variety of user-supplied batteries
• Meets Normal a Peak Power Demands
• 700W of continuous power
• 1050W of reserve power up to 1.5 sec.
• 1400W of peak power up to 1.1 sec. to accommodate surge power demands during equipment startup and cycling
• Automatic overload detector, built-in multi-speed cooling faand resettable AC circuit breakers protect unit from damage
• High-current DC input terminals for simple hardwired installation
• Automatic Transfer Switching
• Transfer relay switches to inverter power during blackout in 16.6 ms
• 3-position switch enables to, Charge Only or System Off mode
• 3-Stage 6A Battery Charger
• Serves as battery charger when external 120V AC power is supplied and powering connected equipment
• Protects battery from overcharging and overdischarging
• Low-battery protection prevents exssive battery depletion
• Front-Panel LEDs
• Indicate AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status
• Compact Aluminum Housing
• Weighs just 4 lb.
• Resists moisture in high-humidity environments
• Built-innting feet for installation on any rigid horizontal surface
• Grounding lug connects unit to earth ground or vehicle grounding system
• Built-in AC power cord and NEMA 5-15P plug connects to AC power source

Specification Description

Product Group: Power Inverters
